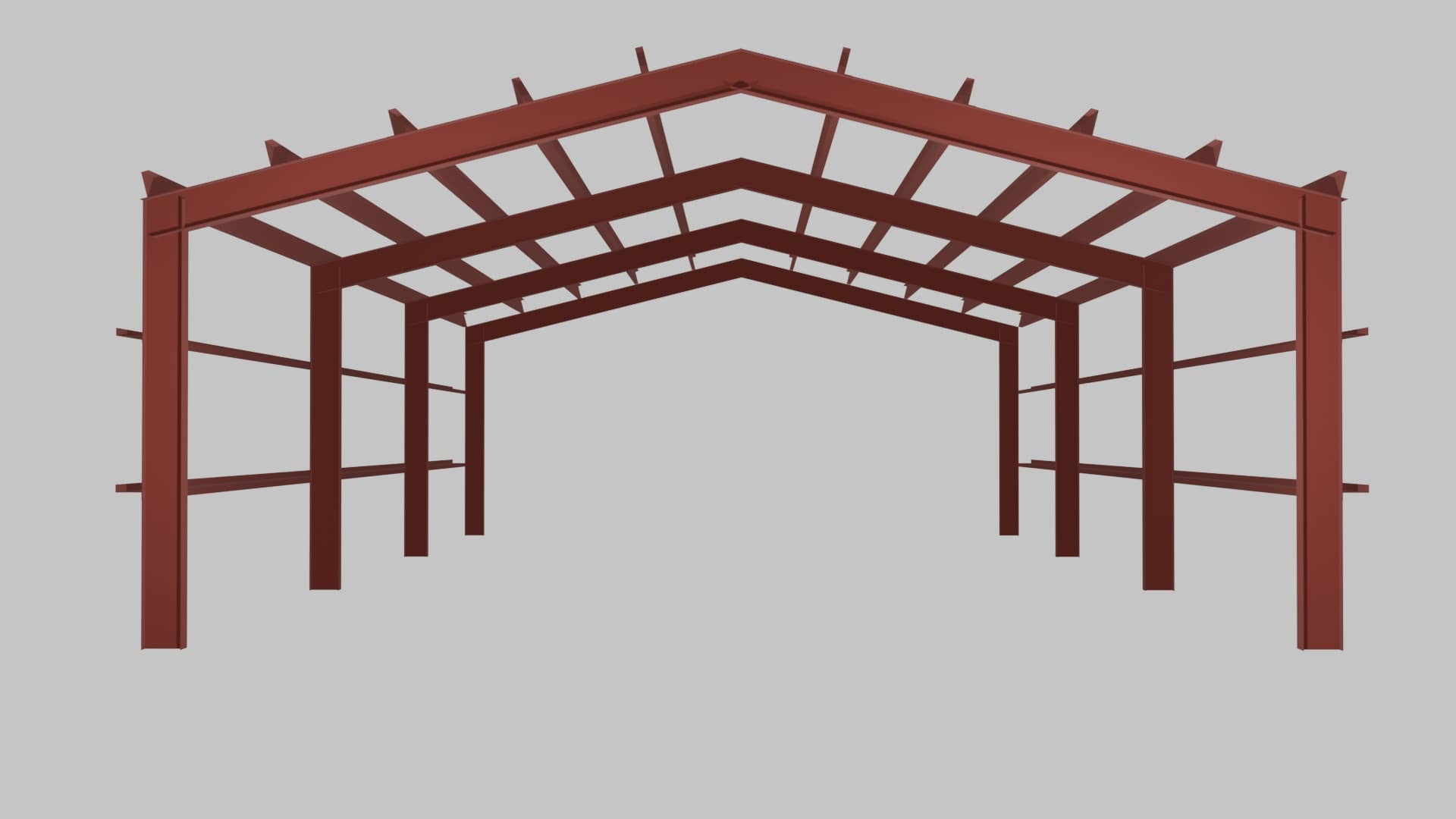

3:12 Roof Pitch
A 3:12 roof pitch means the roof rises 3 inches for every 12 inches of horizontal run, creating a gentle slope of about 14 degrees. This low‑profile design offers clean, minimal aesthetics while still meeting basic drainage needs. With a pitch factor of 1.03, it works especially well for modern or minimalist architecture, adding a subtle roofline that supports the overall style without drawing too much attention.
3:12 Roof Pitch Metal Building Design Examples
Other Common Roof Pitches
Key Characteristics
- Steep slope – The roof rises 6 inches per foot of run, creating a tall, prominent profile often used for barndominiums, cabins, and premium shops.
- 26.6‑degree angle – This angle dramatically improves water and snow shedding, reducing long‑term load stress and ice‑dam risk.
- Excellent drainage – Water clears quickly, minimizing standing moisture and extending panel and fastener life.
- Superior snow shedding – Snow slides off efficiently, which is ideal for Colorado’s winter conditions; though snow guards may be needed near walkways.
- Strong wind performance – Steeper slopes can catch more wind, but PEMB engineering compensates with bracing and panel fastening patterns.
- Broad panel compatibility – Works with standing seam, R‑panel, and concealed‑fastener systems; installation technique matters more at this pitch.
- More attic or loft volume – The steeper rise creates significantly more usable interior space for mezzanines, HVAC routing, or vaulted ceilings.
- More demanding installation – Crews require additional fall protection and staging, which can increase labor cost and install time.
Key Characteristics
- Moderate slope – Rises 5 inches per foot of run, giving you a balanced profile that avoids the “flat” look of low‑slope roofs while staying far easier to build than steep residential pitches.
- 22.6‑degree angle – This angle improves water and snow shedding, which matters in Colorado’s freeze‑thaw cycles and reduces long‑term roof load stress.
- Enhanced drainage – Faster runoff reduces standing water, minimizes leaks, and extends panel and fastener life.
- broader panel compatibility – Works with standing seam, R‑panel, and most concealed‑fastener systems without special engineering.
- Easier installation – Steeper than low‑slope but still safe and manageable for crews; no special fall‑arrest systems required beyond standard OSHA compliance.
- Strong wind performance – The angle helps deflect uplift forces better than very shallow roofs, improving overall building resilience.
Key Characteristics
- Moderate incline – The roof rises 4 inches per foot of run, giving a clean, proportional profile that works well for shops, barns, barndominiums, and commercial PEMBs.
- 18.4‑degree angle – This angle provides reliable water and snow shedding without the visual height of steeper residential-style roofs.
- Strong drainage – Steeper than 1:12–3:12, so water clears faster, reducing the risk of ponding and extending panel and fastener life.
- Good snow performance – The slope encourages shedding without creating dangerous slide‑off speeds, which is ideal for Colorado’s winter conditions.
- Balanced wind resistance – The angle helps reduce uplift forces while maintaining structural efficiency in the frame design.
- Broad panel compatibility – Works with standing seam, R‑panel, and most concealed‑fastener systems without special engineering.
Key Characteristics
- Low‑moderate slope – The roof rises 3 inches per foot of run, giving a streamlined, modern profile that keeps overall building height down.
- 14‑degree angle – This angle is shallow enough to reduce steel usage but still steep enough to shed water reliably in most climates.
- Adequate drainage – Not as fast‑shedding as 4:12 or 5:12, but still effective for rain and moderate snow when paired with proper panel selection.
- Snow‑load friendly – Snow tends to sit longer on a 3:12 roof, which engineers account for with purlin spacing, panel gauge, and load calculations.
- Excellent wind performance – The lower profile reduces uplift forces, making it a strong choice in open or high‑wind regions.
- Broad panel compatibility – Works well with standing seam and many R‑panel systems, though standing seam is preferred for long‑term leak resistance.
Key Characteristics
- Very low slope – The roof rises just 2 inches per foot of run, creating a sleek, almost flat profile ideal for modern shops, warehouses, and commercial PEMBs.
- 9.5‑degree angle – This shallow angle minimizes overall building height and reduces the amount of steel required in rafters and columns.
- Controlled drainage – Water sheds more slowly than on 3:12 or 4:12 roofs, so proper panel selection and sealing are critical for long‑term performance.
- Snow retention – Snow tends to sit rather than slide, which engineers account for with purlin spacing, panel gauge, and load calculations; especially important in Colorado.
- Excellent wind resistance – The low profile reduces uplift forces, making 2:12 a strong performer in open plains or high‑wind zones.
- Standing seam preferred – Concealed‑fastener standing seam systems are ideal because they handle low‑slope drainage and thermal movement better than exposed‑fastener panels.
- Cost‑efficient design – Lower pitch means less steel, shorter columns, and reduced panel length; all of which help keep the building budget‑friendly.
Key Characteristics
- Ultra‑low slope – The roof rises just 1 inch per foot of run, creating a nearly flat profile ideal for commercial, industrial, and warehouse‑style PEMBs.
- 4.8‑degree angle – This extremely shallow angle minimizes building height and steel usage but requires precise engineering for drainage.
- Slow drainage – Water sheds very slowly, so proper panel selection, sealing, and gutter design are critical to prevent ponding and leaks.
- Snow accumulation – Snow tends to sit rather than slide, increasing the importance of correct purlin spacing, panel gauge, and load calculations.
- Best with standing seam – A 1:12 pitch essentially requires a standing seam system; exposed‑fastener panels are not recommended due to leak risk.
- Excellent wind performance – The ultra‑low profile minimizes uplift forces, making it strong in high‑wind regions.
Key Characteristics
- Extremely low slope – The roof rises just half an inch per foot of run, creating a near‑flat profile used mostly in industrial or large commercial PEMBs.
- 2.4‑degree angle – This angle is so shallow that water movement is minimal; drainage must be engineered, not assumed.
- Very slow drainage – Water sheds extremely slowly, making proper slope direction, gutter sizing, and internal drains critical to avoid ponding.
- High snow retention – Snow will not slide; it accumulates and must be accounted for in engineering, especially in high snow‑load zones.
- Standing seam required – Only high‑quality standing seam systems (typically 2″+ seam height) are appropriate; exposed‑fastener panels are not viable.
- Strict waterproofing requirements – Sealant type, clip spacing, panel gauge, and seam integrity are all mission‑critical at this pitch.
